NavLive Demo Scan
Scanning an Office Block Floor in West London
A major refurb company used the NavLive scanner to capture the existing conditions of an office block floor ahead of renovation, importing the results directly into Revit.

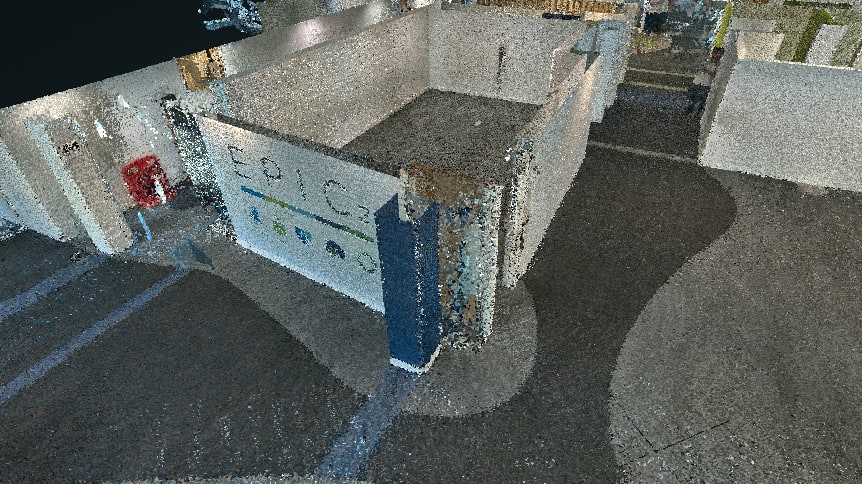

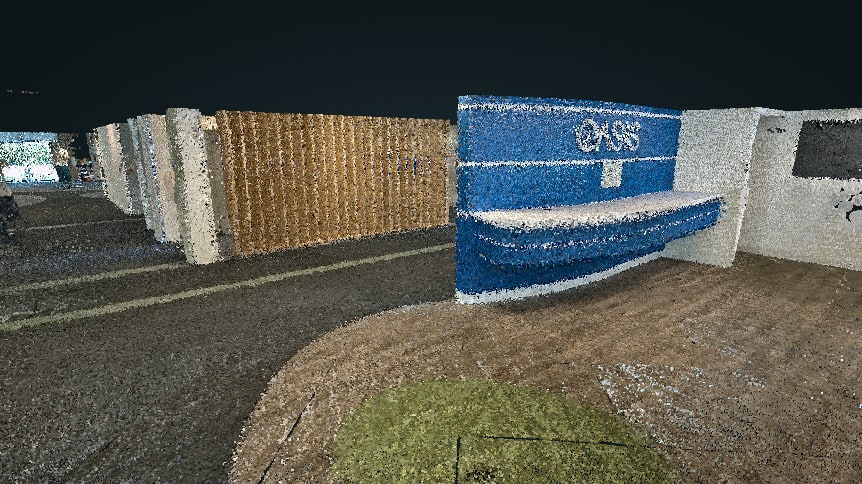

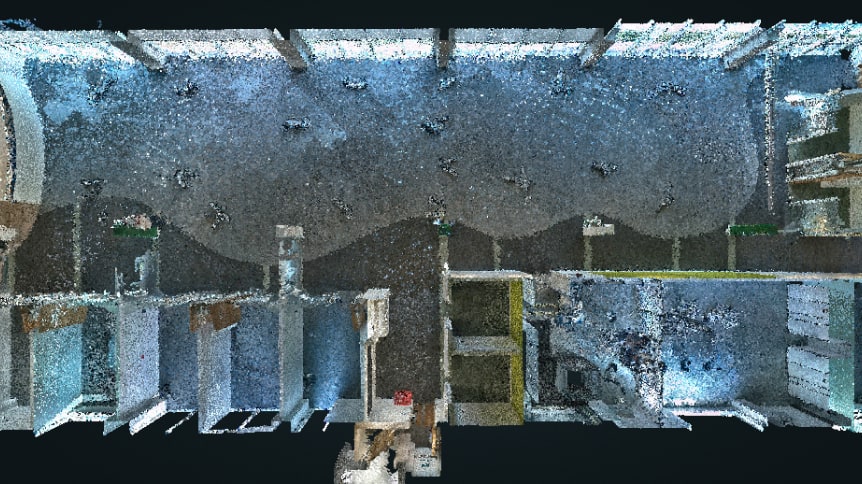

Full 3D Point Cloud Model
The NavLive scanner captures a full 3D point cloud as you walk the site, with all processing handled in real time on the device. It's ready to view in the Portal as soon as the scan is uploaded.
TIP: Click and drag your mouse to explore the 3D point cloud
File Formats:
PCD
E57
LAS
LAZ

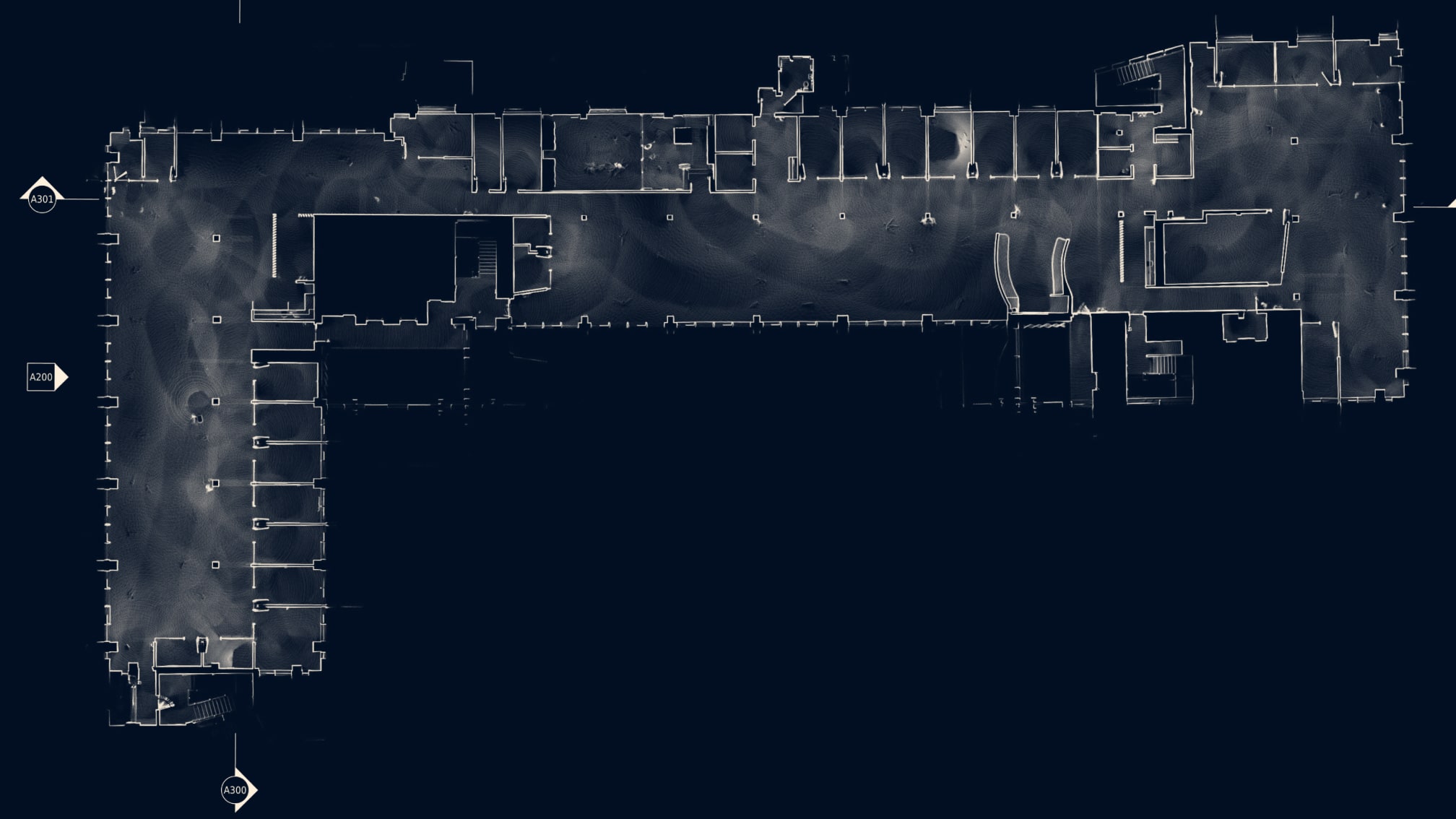

Top Down 2D View
The point cloud is automatically sliced at 1.4m to generate a top-down 2D view, ready to import into Revit, AutoCAD and other platforms as the foundation for your line work.
File Formats:
PDF
DXF

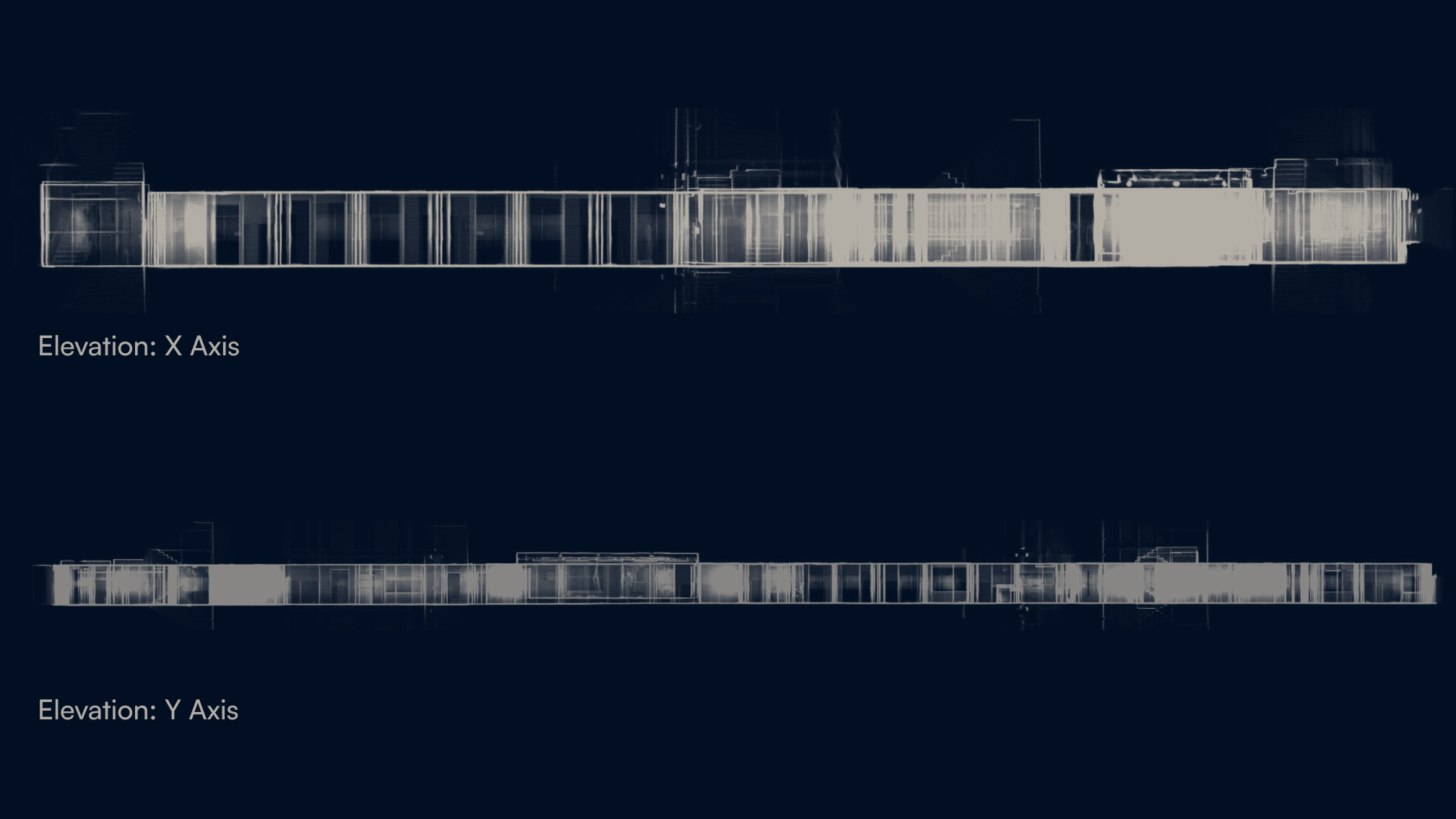

Elevation View
Side-on elevations are captured along both the X and Y axes, giving a clear view through the full building and adding height dimension to your BIM model.
File Formats:
PDF
DXF

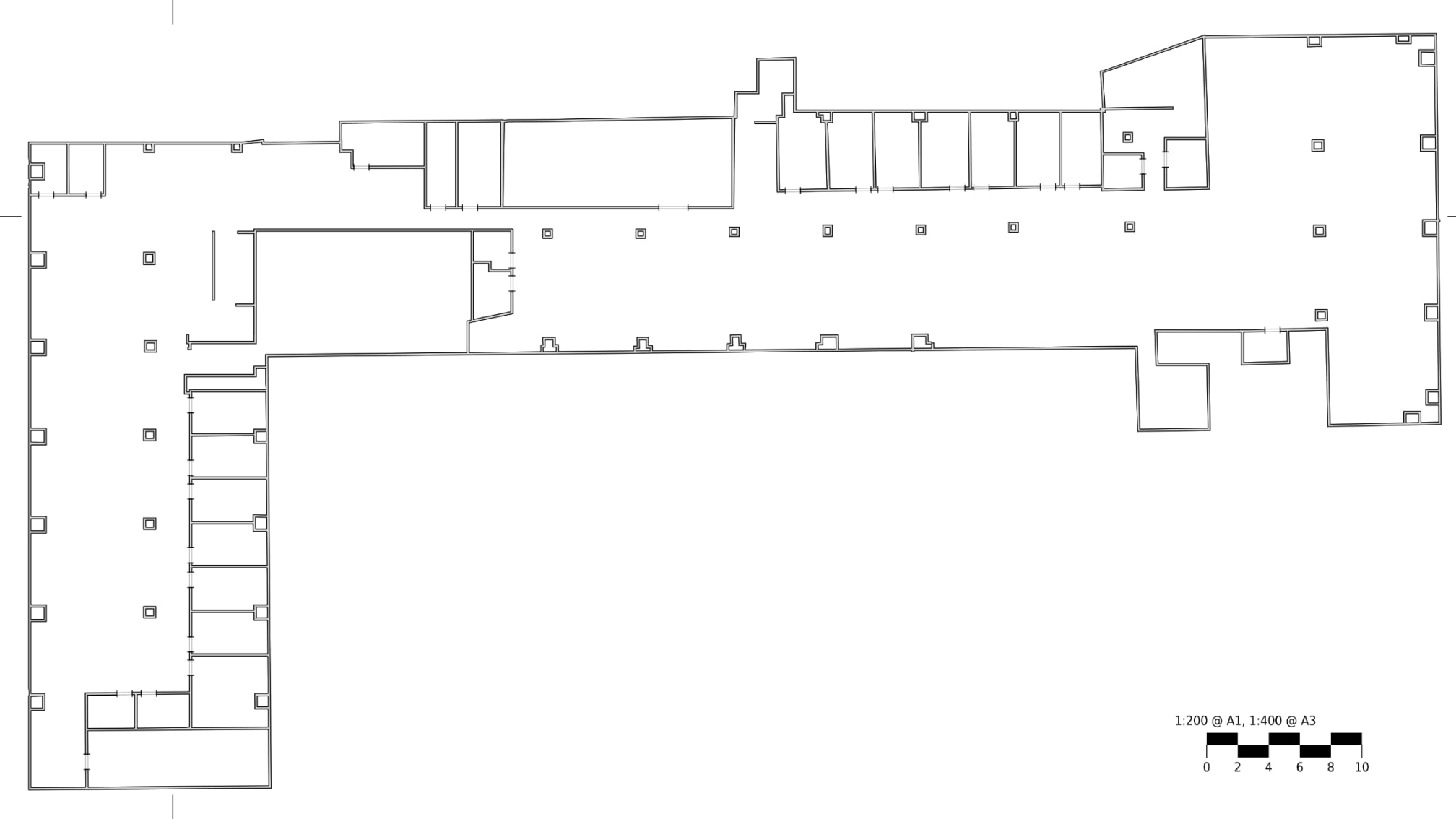

Floor Plans
Our on-board AI automatically detects walls to generate an initial floor plan, which can be edited directly in the NavLive Portal after scanning. Export a DXF file directly into your BIM software for further refinement.
File Formats:
DXF

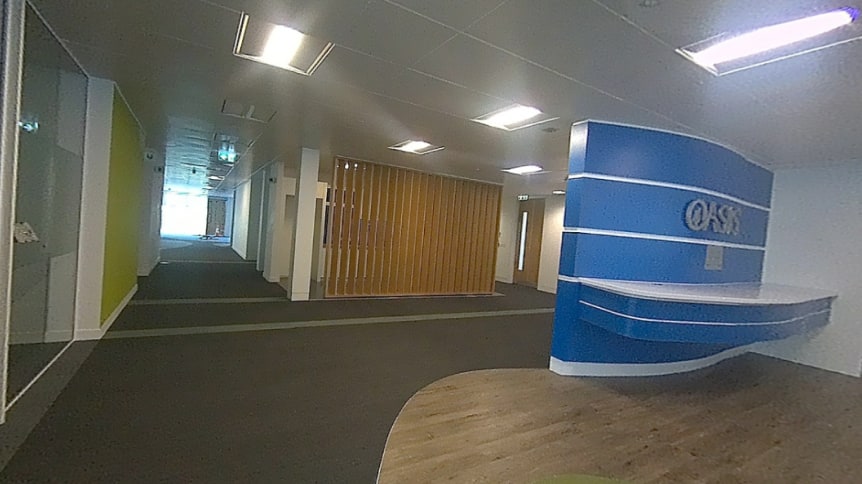

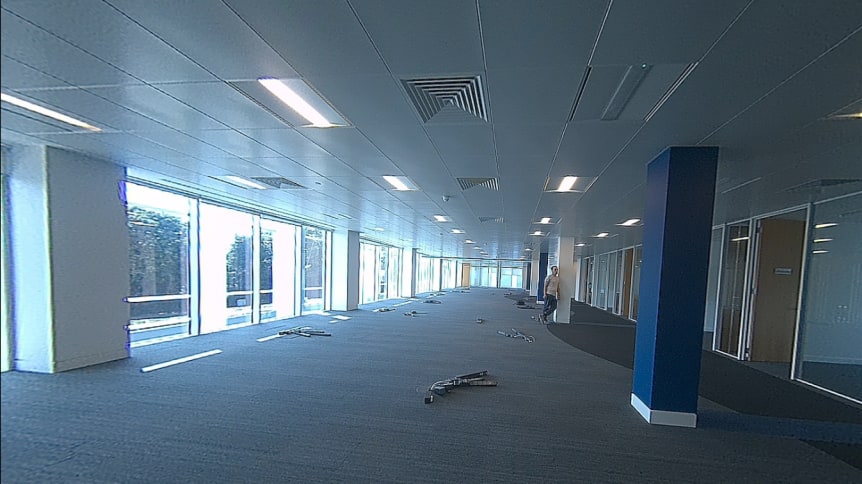

Site Photography & Building Schedules
Rewalk the scan with our SiteView tool, viewing every photo captured automatically along the scan path alongside a first-person 3D point cloud for extra reference. Building schedules place photos of windows and doors at the exact position on the plan from which they were taken.
File Formats:
SiteView
JPG
About the NavLive Scanner
Capture Existing Conditions in a Single Site Walk to RICS-Grade Accuracy
The entire dataset on this page was captured using the NavLive handheld scanner. A single operator simply walks through the building once and NavLive captures everything needed to create a complete digital record of the existing conditions, processing the data in real time as you scan.
- Capture up to thousands of square metres in minutes
- RICS-grade accurate point clouds
- Lightweight handheld scanner with no tripods or targets required
- Real-time processing without any lengthy cloud processing before review
- Designed for architects, surveyors, engineers and contractors
